Test standard: Meet the requirements of GB4208-2017 "Shell protection Level (IP code)" and GB7000.1 "Lamps Part I: General requirements and tests";
Usage: The main function of the equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rainy weather conditions. After the test, through the verification to determine whether the performance of the product meets the requirements, in order to facilitate the design of the product, improve the verification and factory inspection.
IPX5 Water spray test instrument
Product features: 1, split structure, safe and reliable. 2, the equipment frame, sample turntable are all made of high-quality aluminum alloy and SUS304# stainless steel plate, to ensure that long-term use does not rust. 3, water flow through the flow meter adjustment, manual adjustment. 4, nozzle: according to GB4208-2017 standard requirements. 5, electrical components are all imported brands such as LG, Omron; The wiring process meets the requirements of the national standard push, the layout of the board is reasonable, the wiring is firm, and the mark is clear. 6, one-click start, automatic stop, simple and intelligent.
Serial number
Model number
LR-77
1
Control system
(push-button) time relay + transfer switch
2
IP85 Spray Aperture (mm)
6.3
3
IPX5 Spray flow (L/min)
12.5±0.625
4
Water pressure (mpa)
Regulate water flow according to regulations
5

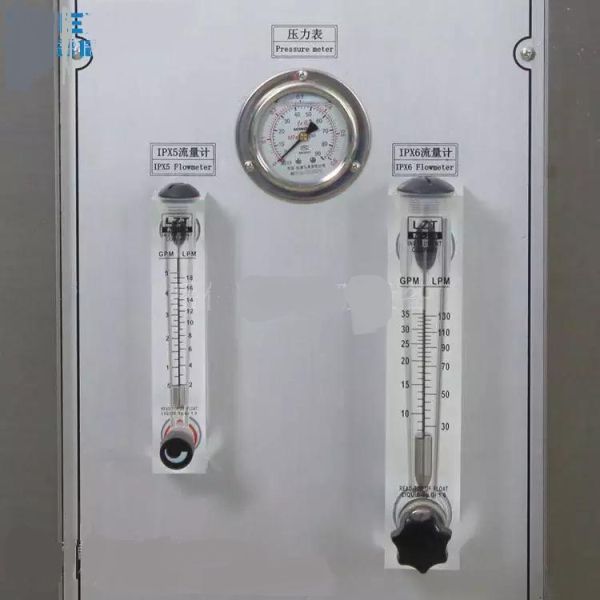

Flow control
The flow rate can be adjusted manually with adjustable rotameter
