Equipment Introduction
The Glass Bending Degree and Thickness Automatic Tester is a specialized detection equipment designed and manufactured by Lonroy for automatically detecting the bending degree and thickness of glass. This equipment has applied for a national utility model patent, with the patent number: ZL202022245692.X. The equipment uses an optical non-contact probe to scan the surface of the glass, measure and calculate the bending degree and thickness values of the glass, and simultaneously draw the bending degree curve and thickness curve of the tested sample along the scanning direction.

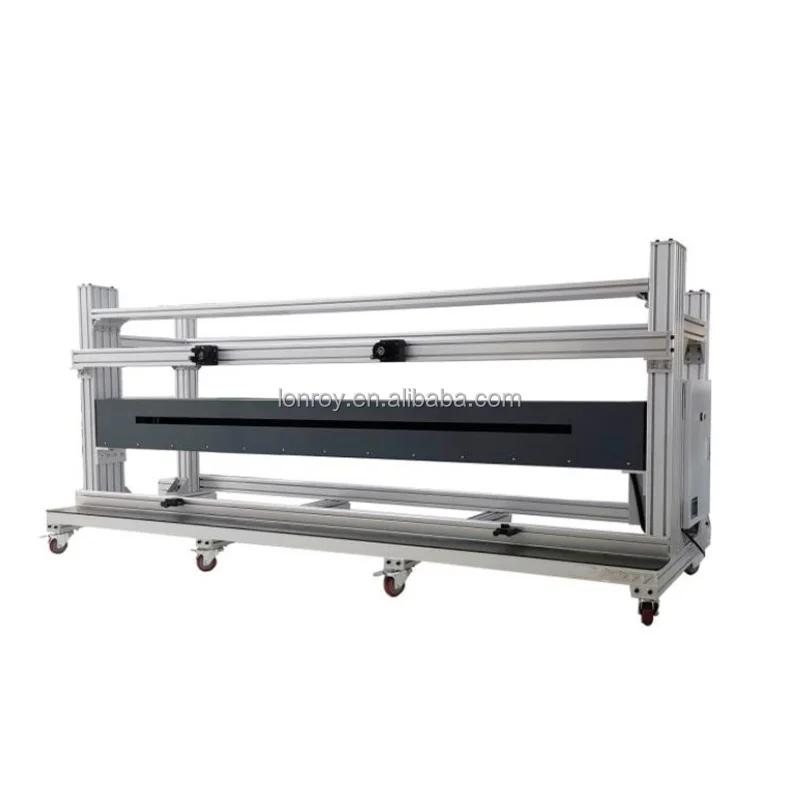

The glass bending degree and thickness automatic tester is a brand-new device for detecting the bending degree and thickness of glass. The system mainly consists of the main structure, sample table, moving module, optical unit, and control system.
System Features
1.Good repeatability, offline detection, and the ability to repeatedly verify the glass bending degree and thickness data.
2.High stability, low equipment failure rate, and easy recovery after a failure.
3.Good safety, with multiple safety protections set in the equipment.
4.Wide applicability, suitable for both factories and laboratories.
5.Wide testing range, this equipment is applicable for the bending degree and thickness detection of various flat glass, and can measure glass of different thicknesses.
Equipment Functions

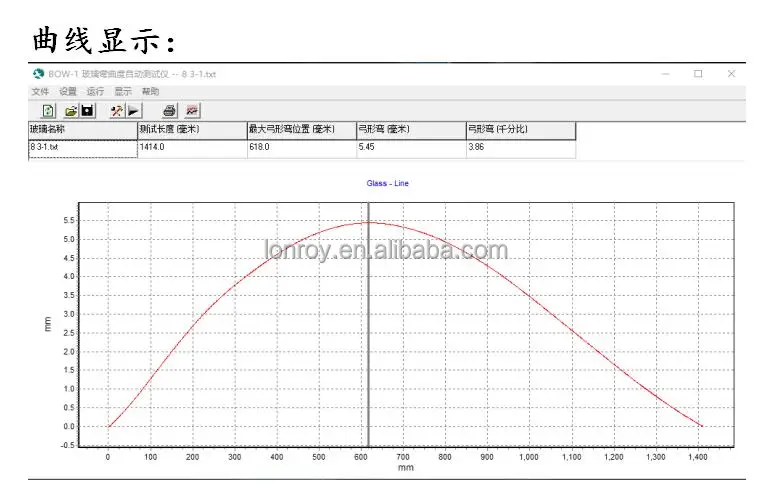

1.Can display the bending degree curve of the tested sample, and can detect the thickness at different positions of the glass.
2.Real-time display of sample test results, including the length of the tested glass sample, thickness at different positions, the percentage of the arc-shaped bending of the sample, and the maximum arc-shaped bending position.

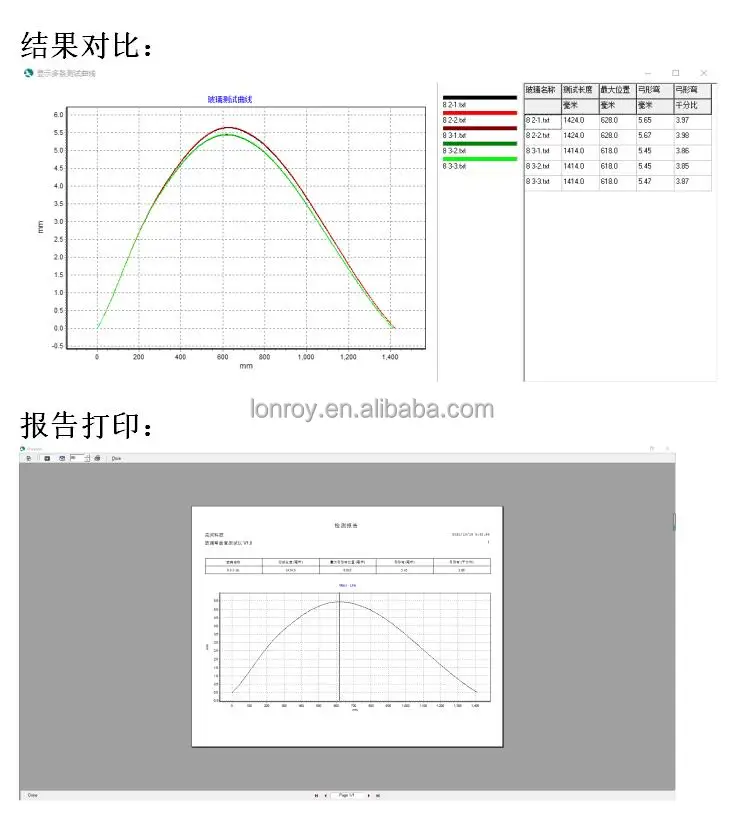

3.Can display the results of multiple tests.
4.Can save or read test data, automatically generate test reports, and can be directly printed.
