Name: Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester
Brand: Lonroy
Price: 1 USD

Model Number : LR-A28

Power supply : 220V 50Hz

Heating power : 3KW

Tank size : 420*305*375mm (length * width * height)

Overall dimension : 605*330*610mm (length * width * height)

Adjustable temperature range : room temperature -100℃

Place of Origin : China

Brand Name : Lonroy

Certification : ISO ASTM CE

MOQ : 1

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

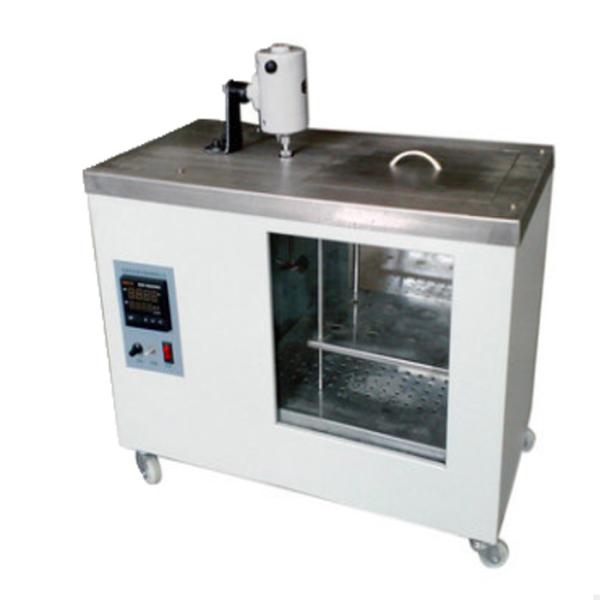

ASTM D1693 Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester

1. Overview

Environmental stress cracking tester is mainly used to measure the stress cracking capacity of ethylene - based resins and plastics.

2.Applicable Standards

GB/T1842, GB/T2951.41, ASTM D1693

Instrument Features

1. The shell of this product is made of high-quality cold-rolled plate with plastic-sprayed surface.

2. The inner tank, upper cover and test-tube stand are made of 304 stainless steel, which are resistant to corrosion and durable.

3. Sample retainer brass material, machined slotted (non-stainless steel plate bending).

4, PID special temperature control instrument table, accurate temperature control, stable performance, easy to operate.

Technical Parameters

Adjustable temperature range	room temperature -100℃
Temperature control accuracy	±0.5℃
Blade length	19mm
Blade height	3mm
Blade thickness	0.24mm
Notch depth	0.3-0.65mm
Sample specifications	length
Specimen retainer width	12±0.05mm, 11.75±0.05mm (optional)
Tank size	420305375mm (length * width * height)
Overall dimension	605330610mm (length * width * height)
thermal medium	pure water
Ambient temperature	10-40℃)
Power supply	220V 50Hz
Heating power	3KW

Configuration List

Serial Number	Name	Units	Quantity	Remark
1	Thermostatic Bath	PCS	1
2	Test Tube Stand	PCS	1	8 station, expandable
3	Nick Device	PCS	1
4	Test Tube	PCS	3
5	Cutting Tool For Processing Sample	PCS	1	38* 13mm
6	Sample Retainer	PCS	3	1. There are two options for the width of the inner slot: 12+ -- 0.05mm;11.75 + 0.05 mm 2. A maximum of 10 samples can be placed in each sample cage
7	Sample Bending Device	PCS	1
8	Sample Transfer Tool	PCS	1
9	Blade	PCS	3
10	Specification	PCS	1
11	Packing List	PCS	1
12	Certificate	PCS	1
